Strong Power Articulated Backhoe Wheel Loader NK862

Product Categories
Linyi New Sky Construction Machinery Co., Ltd.
Contact Now

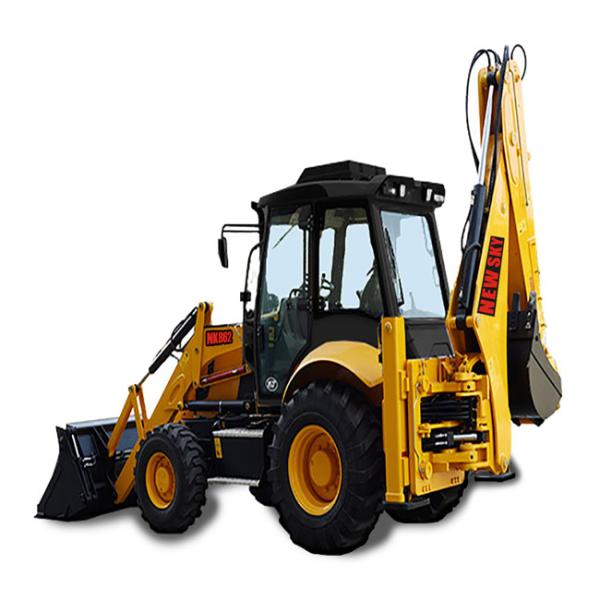

Strong Power Articulated Backhoe Wheel Loader NK862

Brand Name : NEW SKY

Model Number : NK862

MOQ : 1 unit

Supply Ability : 200units per year

Delivery Time : 7-40days

Packaging Details : no pack

Brand : NEW SKY

Moving type : Backhoe Loader

Condition : New

Color : Yellow

Engine model : WEICHAI DEUTZ WP4G95E221

Rated Power/Rated Revolution（kw/rpm） : 70/2200

Warranty : 1 Year

Contact Now

Articulated backhoe loader NK862

Backhoe loader NK862 characteristics

◎DEUTZ engine provides strong power and low fuel consumption

◎It is equipped with the driving & steering front axle, maintenance-free wet-type unilateral braking rear axle and four-speed synchronous shift gearbox designed and manufactured specially by CARRARO; its forward and backward directions are switched by electric hydraulic control.

◎Tool carrier loader linkage provides multi-functions and flexibility◎The excavator working device can rotate 180 degrees along the gyration center at the back of the frame. The H-shaped leg and the side-shift excavator can excavate along the wall and are featured in strong working stability, wider working range and higher efficiency.

◎Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size.



Backhoe loader NK862 main specification



Digging reach at ground level (mm) 5390/6485   Dump height (mm) 2550
Max. digging depth (mm) 4268/5430   Discharge (°) 45
Max. Working height (mm) 3645/4385   Dump reach (mm) 774
Max. Dump clerance (mm) 1562/2506   Lift capacity to full height (kN) 25
Bucket dig force (kN) 57   Bucket breakout force (kN) 40
Bucket capacity (m3/yd3) 0.2   Bucket capacity (m3/yd3) 0.9
Engine
Emission Regulation Stage II   Make WEICHAI DEUTZ WP4G95E221
Rated Power/Rated Revolution(kw/rpm) 70/2200
